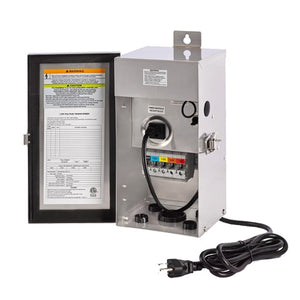

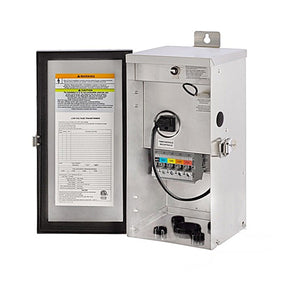

Low Voltage Transformer

75W Professional, Low Voltage, Multi-Tap Stainless Steel Transformer with Timer and Photocell Built In.

Transformer

-Non dimmable if using timer or/and photocell
-Temperature class B(130°C)
-Thermal manually reset secondary breaker 1200A
-Timer and photocell build in options

Housing:

-The enclosure is stainless steel, NEMA 3R rated.
-Wiring compartment has 2 knockout sizes for 3/8-inch screw cable
 connectors.
-Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded.
-Dimensions (inch): H = 8.5, W = 3.75, D = 4.4
-Weight (LBs): 0.5

Electrical Parameters

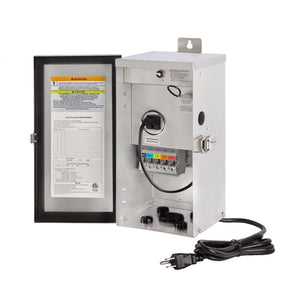

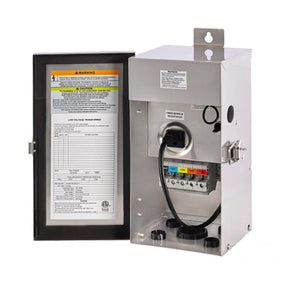

300W Low Voltage, Stainless Steel Transformer with Timer & Photocell Built In

Transformer

Non dimmable if used with timer or/and photocell
Temperature class B(130°C)
Timer and photocell build in options

Housing:
*Stainless Steel enclosure - NEMA 3R rated
*Wiring compartment has 2 knockout sizes for 3/8-inch screw cable
connectors
*Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded.
*Dimensions (inch): H = 12.25, W = 4.75, D = 4.8
*Weight (LBS): 14

Electrical Parameters

300W LOW VOLTAGE TRANSFORMER STAINLESS STEEL

MULTI-TAP CONNECTIONS (12V, 13V, 14V, 15V) TO ALLOW FOR SHORT AND LONG RUNS.

*Encapsulated transformer for quiet cool operation.

*Thermal circuit breaker on secondary to protect lighting system.

*Isolation type transformer for safe operation.

*3Foot line cord with ground plug.

*Easy opening enclosure with knockouts for hardwiring.

*Thermal block makes wiring capacities simple and fast.

*Suitable for wet locations.

ETL and CETL Listed for U.S. and Canadian safety standards.
