300W Professional Low Voltage Transformer Stainless Steel Multi-Tap Photo Cell & Timer Build-In

$169.49

300W Professional Low Voltage Transformer Stainless Steel Multi-Tap Photo Cell & Timer Build-In

$169.49

0

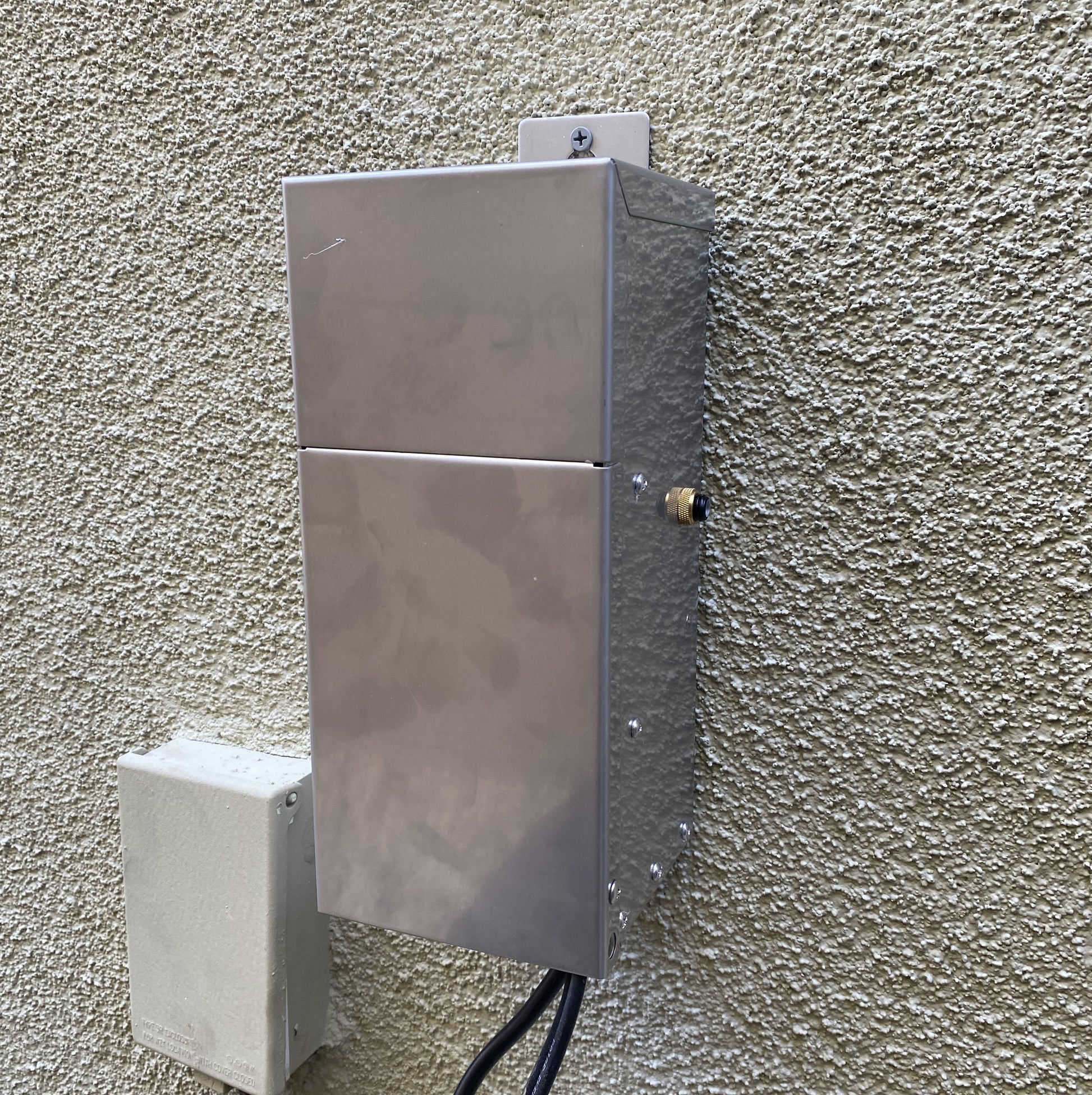

Professional Low Voltage Transformer Stainless Steel 300W

Magnetic Outdoor Non Dimmable MT
Stainless Steel Enclosure

Transformer

Non dimmable if use timer or/and photocell
Temperature class B(130°C)

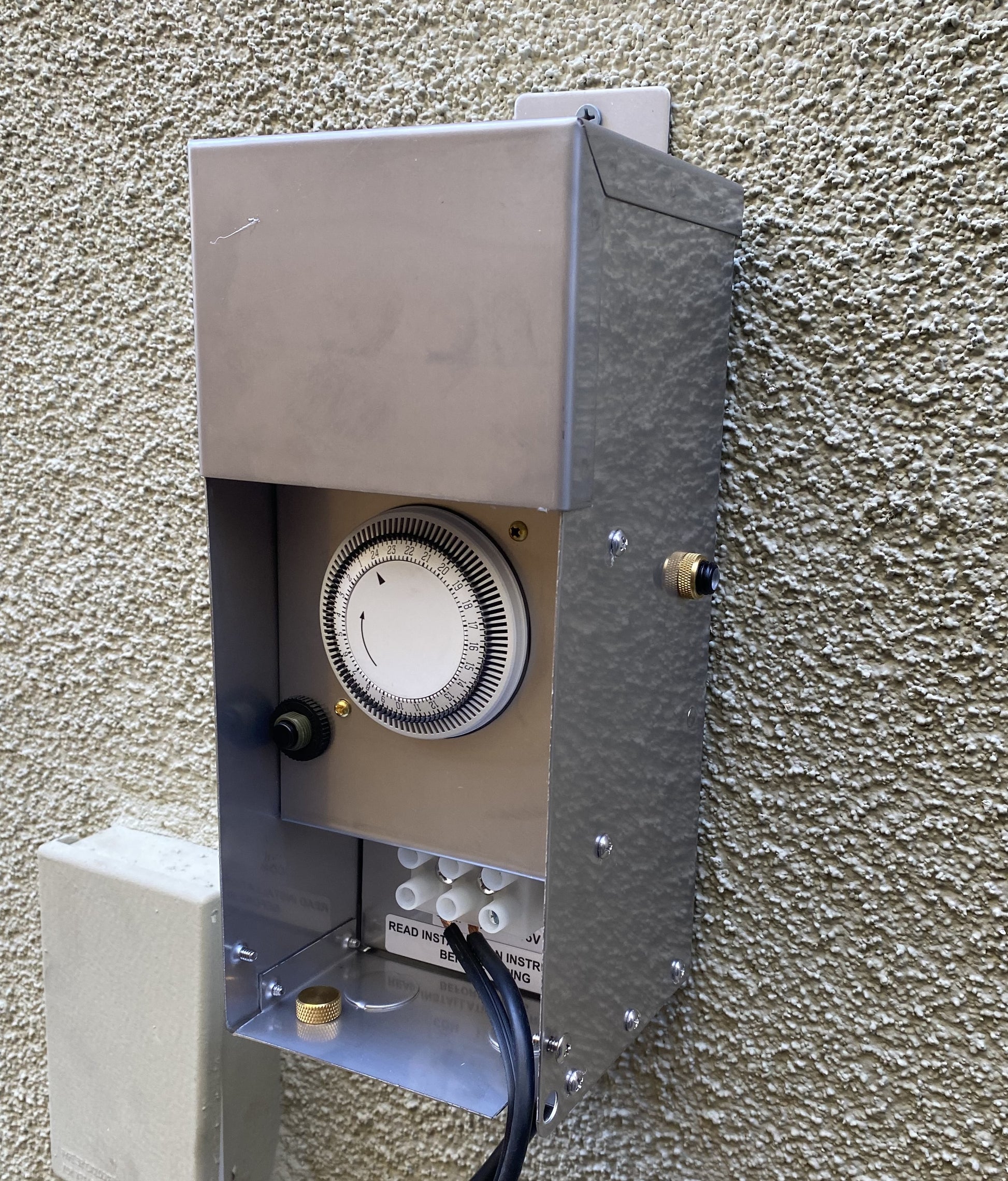

Timer and photocell build in options

Housing:
The enclosure is Stainless Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully loaded.
Dimensions (inch): H = 12.25, W = 4.75, D = 4.8
Weight (LBs): 14

Electrical Parameters

Input Voltage: 120V 60Hz
Max. input current: 2.5A at full load
Output voltage without load: 12/ 15VAC
Output voltage fully loaded: 11.5/ 14.5VAC
Max. Total Wattage: 300W
Max. Output Current: 25/ 20A
Efficiency: 90%
