  3. 200W Low Voltage Transformer Stainless Steel, Multi-Tap With Timer & Photocell Build-In
By Lumiere Lighting

200W Low Voltage Transformer Stainless Steel, Multi-Tap With Timer & Photocell Build-In

$179.49 USD
$179.49 USD
Shipping calculated at checkout.
Availability: Low stock
SKU: ESL-200
$179.49 USD
$179.49 USD

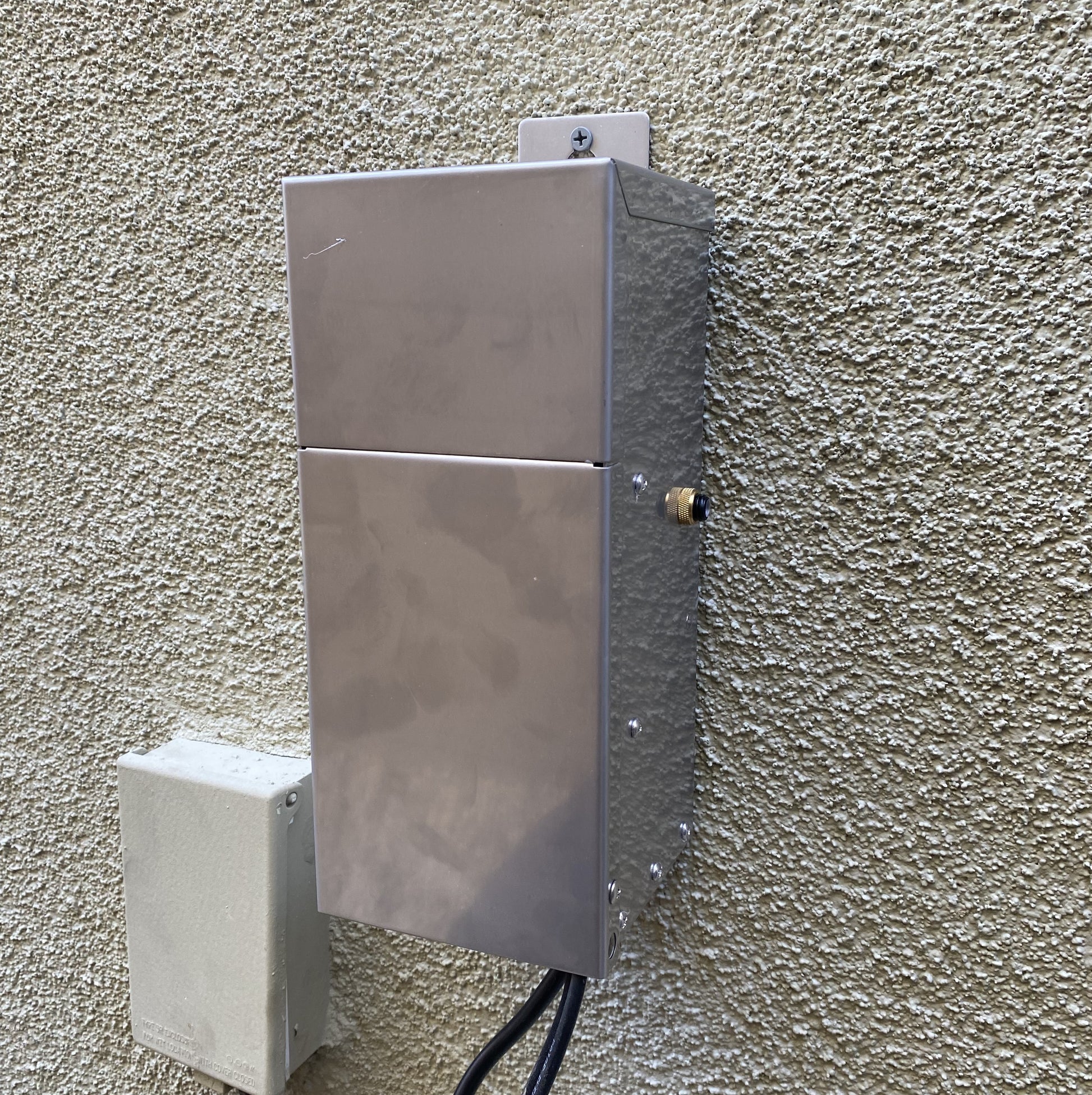

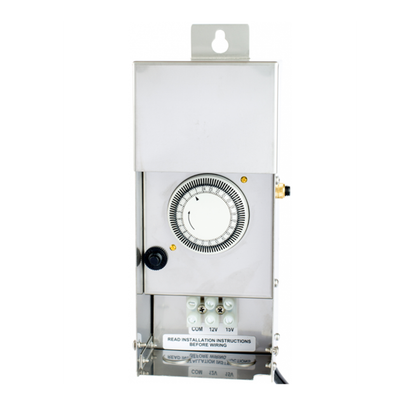

200W Professional Stainless Steel Low Voltage Transformer with Timer & Photocell Built in

*Magnetic Outdoor Non-Dimmable
*Stainless Steel Enclosure

Transformer:
Non Dimmable
Temperature class B(130°C)
Thermal manually reset secondary breaker 25A

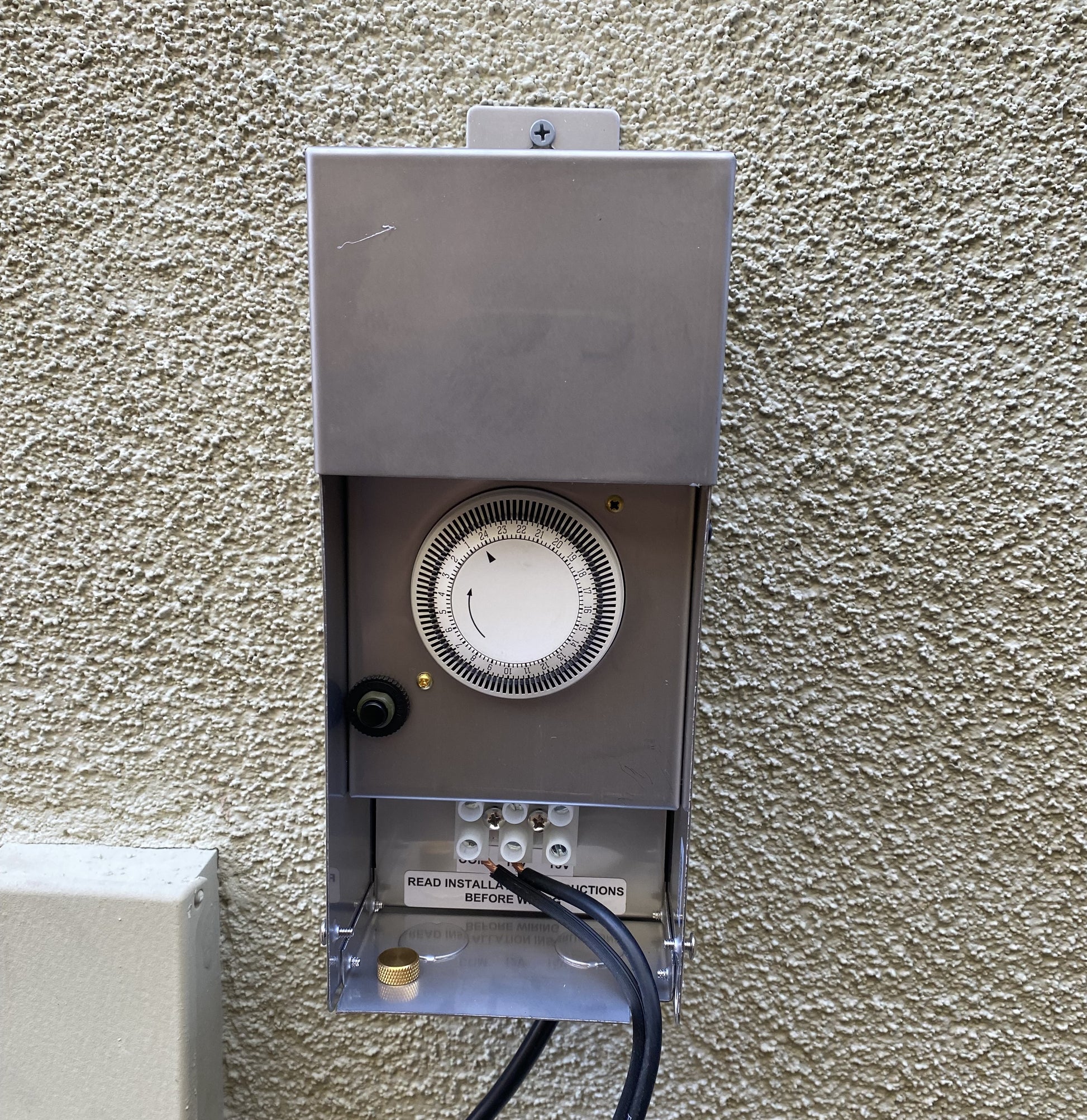

Timer and photocell build in options

Housing:
*The enclosure is stainless steel, NEMA 3R rated
*Wiring compartment has 2 knockouts sizes for 3/8-inch screw cable
 connectors
*Enclosure Temperature does not exceed 65°C at 45°C ambient and   fully loaded
*Dimensions (inch): H = 12.25, W = 4.75, D = 4.8
*Weight: 9 lbs

Electrical Parameters

Input Voltage: 120V 60Hz
Max. input current: 1A
Output voltage without load: 12/ 15VAC
Output voltage fully loaded: 11.5/ 14.5VAC
Max. Total Wattage: 200W
Max. Output Current: 16.6/ 13.3A
Efficiency: 90%

DO IT YOURSELF - EASY TO INSTALL 12V Landscape Lighting

Landscape lighting provides a simple, yet effective way to transform your home's nighttime ambiance. By increasing safety, security, and aesthetics, outdoor lighting can accentuate the beauty of your yard. This instructional guide will empower you to install landscape lighting and foster a hospitable environment for visitors and neighbors.
