What Are In-Ground Well Lights?
In-ground well lights, also called recessed landscape lights or buried up lights, are fixtures installed flush with the ground surface, making them virtually invisible during the day. At night, they project a powerful upward beam of light to dramatically illuminate trees, walls, columns, flags, and architectural features. Because they sit below grade, they're ideal for high-traffic areas like driveways, walkways, patios, and hardscape surfaces where above-ground fixtures would be a tripping hazard or an eyesore.
Where to Use In-Ground Well Lights
Well lights shine brightest, literally and figuratively, in these applications:
- Driveways & Walkways: Flush-mounted well lights line driveways and paths without obstructing foot or vehicle traffic, creating a clean, runway-style effect.
- Under Trees: Uplighting a specimen tree from below with a well light creates a dramatic canopy effect that's impossible to achieve with above-ground fixtures.
- Architectural Columns & Walls: Placed at the base of columns, pillars, or stone walls, well lights graze the surface with light to reveal texture and depth.
- Flagpoles: A well light at the base of a flagpole provides clean, unobstructed illumination, the gold standard for flag lighting.

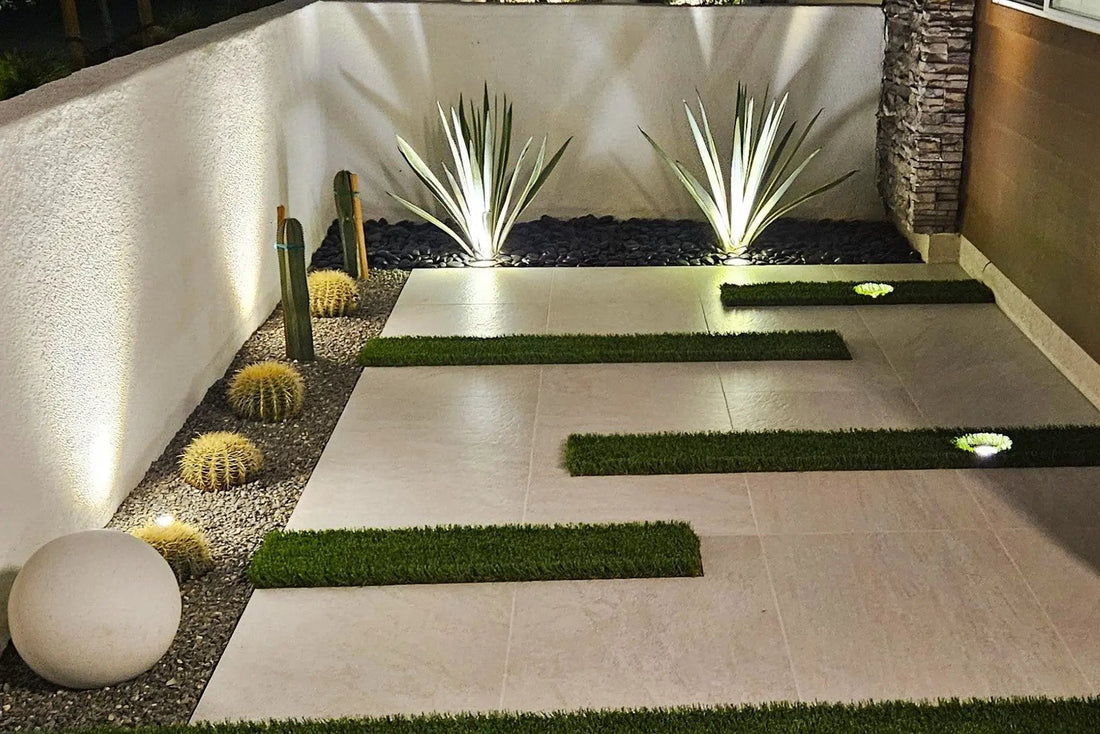

- Patios & Pool Decks: Recessed into pavers or concrete surrounds, well lights add ambient glow without cluttering the hardscape with fixtures.
- Retaining Walls: Installed at the base of retaining walls, they create a dramatic wash of light across the face of the wall.
Key Features to Look For
Not all well lights are built the same. Here's what matters when selecting fixtures:
- IP Rating: Look for IP67 or IP68 rated fixtures, these are fully waterproof and rated for submersion, which is critical for fixtures that can collect water or be exposed to irrigation.
- Load Rating: If installing in a driveway or area with vehicle traffic, choose fixtures rated for vehicular load (typically 3,000–5,000 lbs or more).
- Material: Solid brass or stainless steel housings offer the best corrosion resistance and longevity. Avoid plastic housings in wet or high-traffic environments.
- Lens Options: Clear lenses maximize light output; frosted lenses soften the beam for a more diffused effect. Some fixtures offer interchangeable lenses for flexibility.
- Beam Angle: Narrow beams (10–25°) work best for tall, focused subjects like flagpoles and columns. Wider beams (35–60°) are better for trees and broad wall surfaces.
Installation Essentials
In-ground well lights require more planning than above-ground fixtures, but the results are worth it:
- Dig to Depth: Excavate to the depth specified by the manufacturer — typically 6–12 inches depending on the fixture size. Ensure the top of the fixture sits flush with the finished surface.
- Drainage: Always add a gravel bed beneath the fixture to allow water to drain away from the housing. Poor drainage is the #1 cause of premature well light failure.
- Conduit: Run low-voltage wire through flexible conduit when passing under hardscape surfaces to protect it from cracking and shifting over time.
- Burial Depth for Wire: Bury all low-voltage wire at least 6 inches deep; deeper is better under driveways and high-traffic areas.
- Waterproof Connections: Use direct-burial wire connectors at every splice. Moisture intrusion at connections is a leading cause of system failures.
Lumen Output & Color Temperature
- Lumen Output: For most landscape applications, 300–600 lumens per well light delivers impactful illumination. For very large trees or tall architectural features, 600–1,000 lumens may be appropriate.
- Color Temperature: Warm white (2700K–3000K) is the standard for residential landscape lighting — it's flattering to plants, stone, and wood. Avoid cool white tones, which can make landscapes feel cold and commercial.
Maintenance Tips
Well lights are low-maintenance by design, but a little care goes a long way:
- Clean the lens periodically to remove dirt, debris, and mineral deposits that reduce light output.
- Check that the fixture remains flush with the surface after freeze-thaw cycles or ground settling.
- Inspect wire connections annually for corrosion, especially in areas with heavy irrigation.
- Replace lamps or LED modules as needed, quality LED well lights typically last 50,000+ hours.
In-ground well lights are one of the most powerful tools in a landscape lighting designer's toolkit. When installed correctly, they deliver a level of drama and sophistication that no above-ground fixture can match and because they disappear into the landscape by day, the nighttime transformation is always a showstopper.
