LUME-PRO Low Voltage Transformer Stainless Steel 300W with Digital Tim

LUME-PRO Low Voltage Transformer Stainless Steel 300W with Digital Timer & Photocell Build-In

$159.49

lView fullsize image

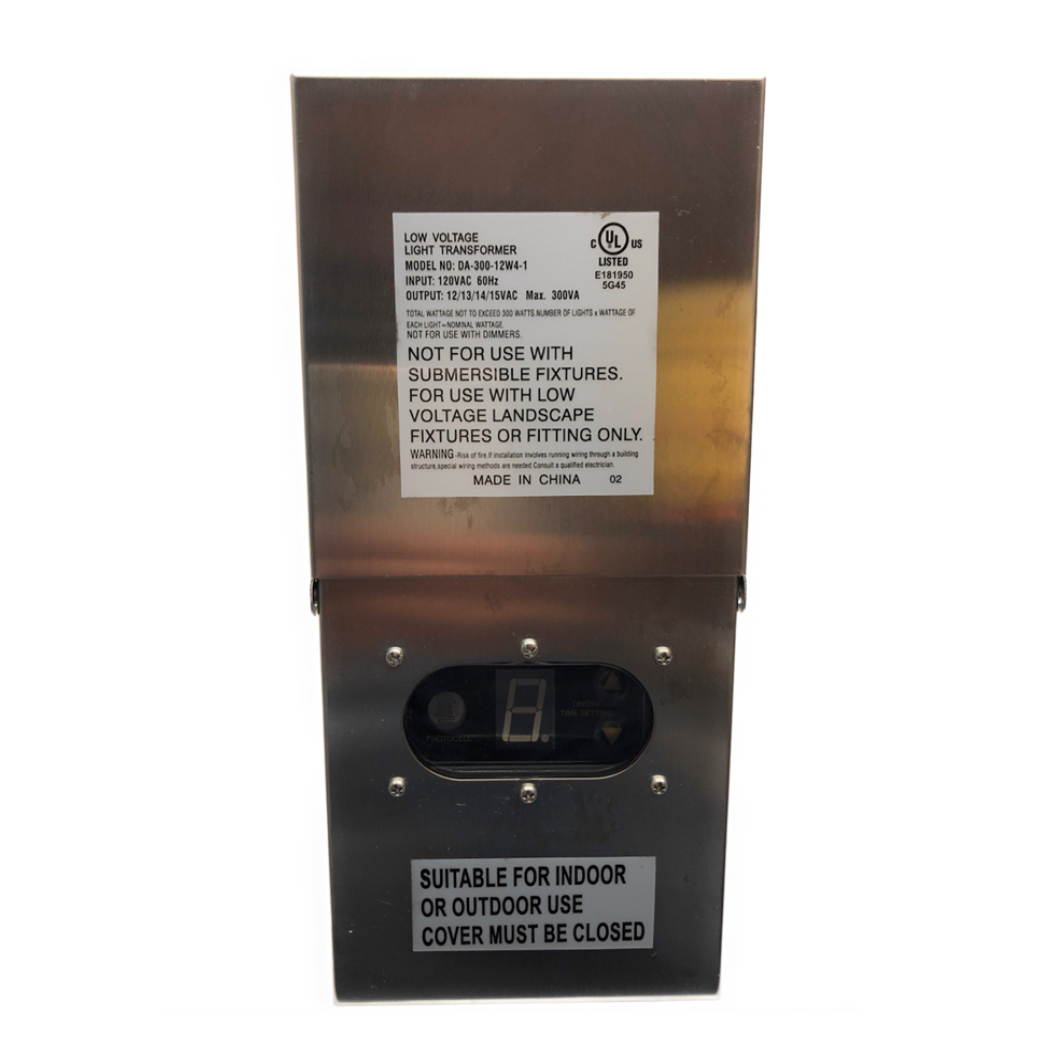

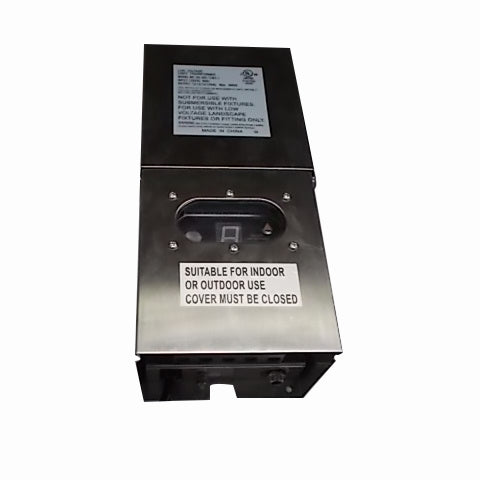

300W Low Voltage Transformer Heavy Duty Stainless Steel

Compatible with A/C LED bulbs

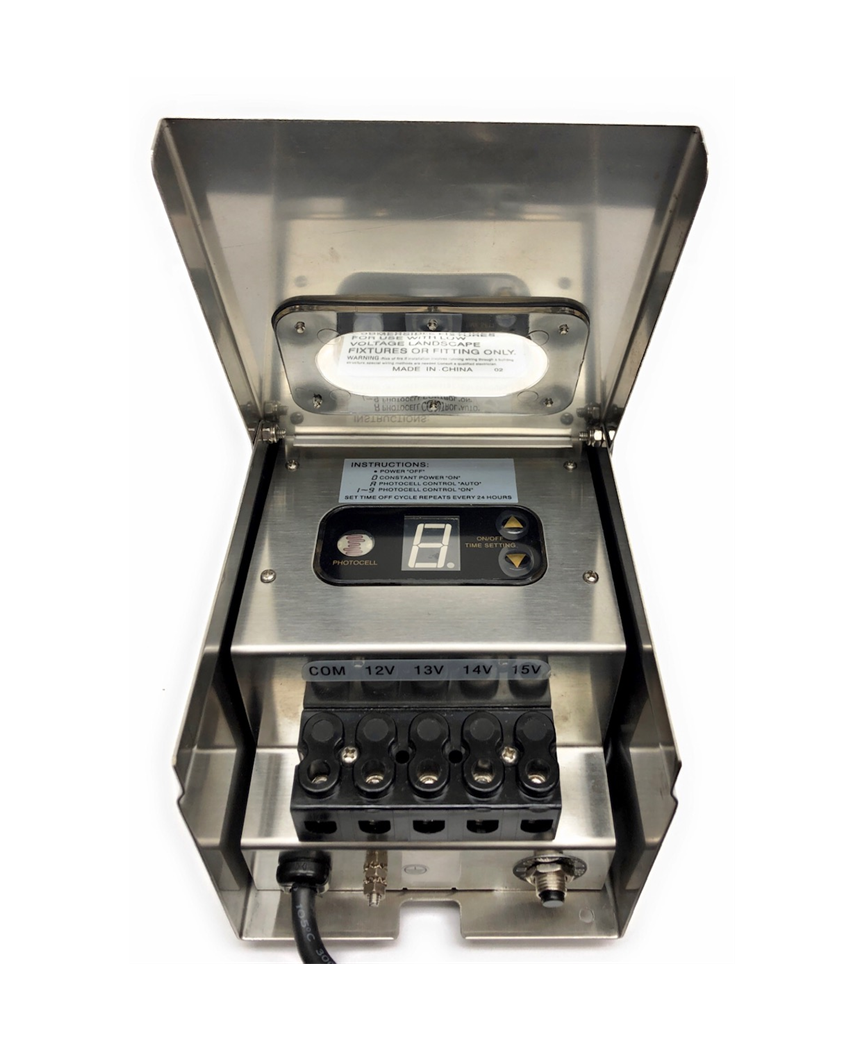

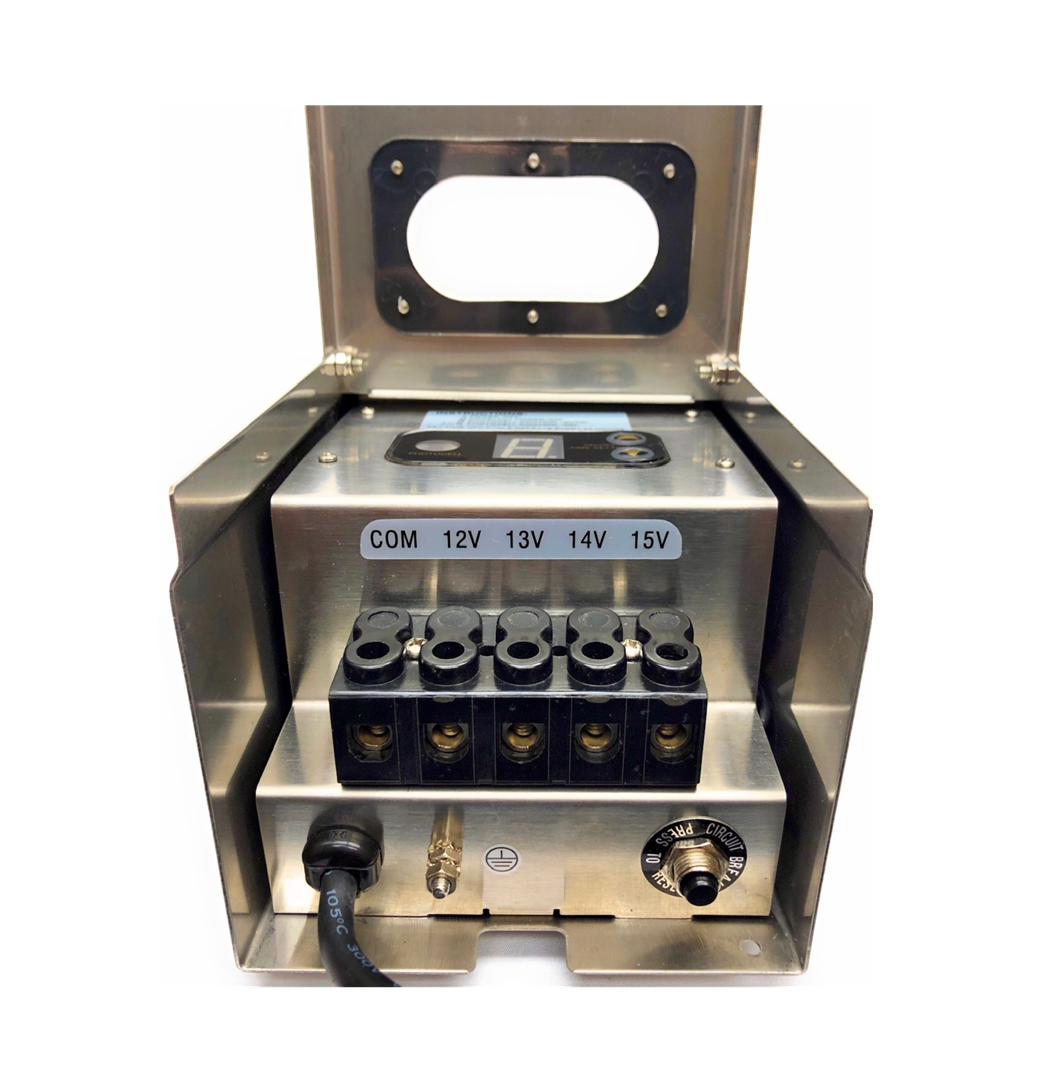

Multi Tap 12V-13V-14V-15V for Longer wire Runs

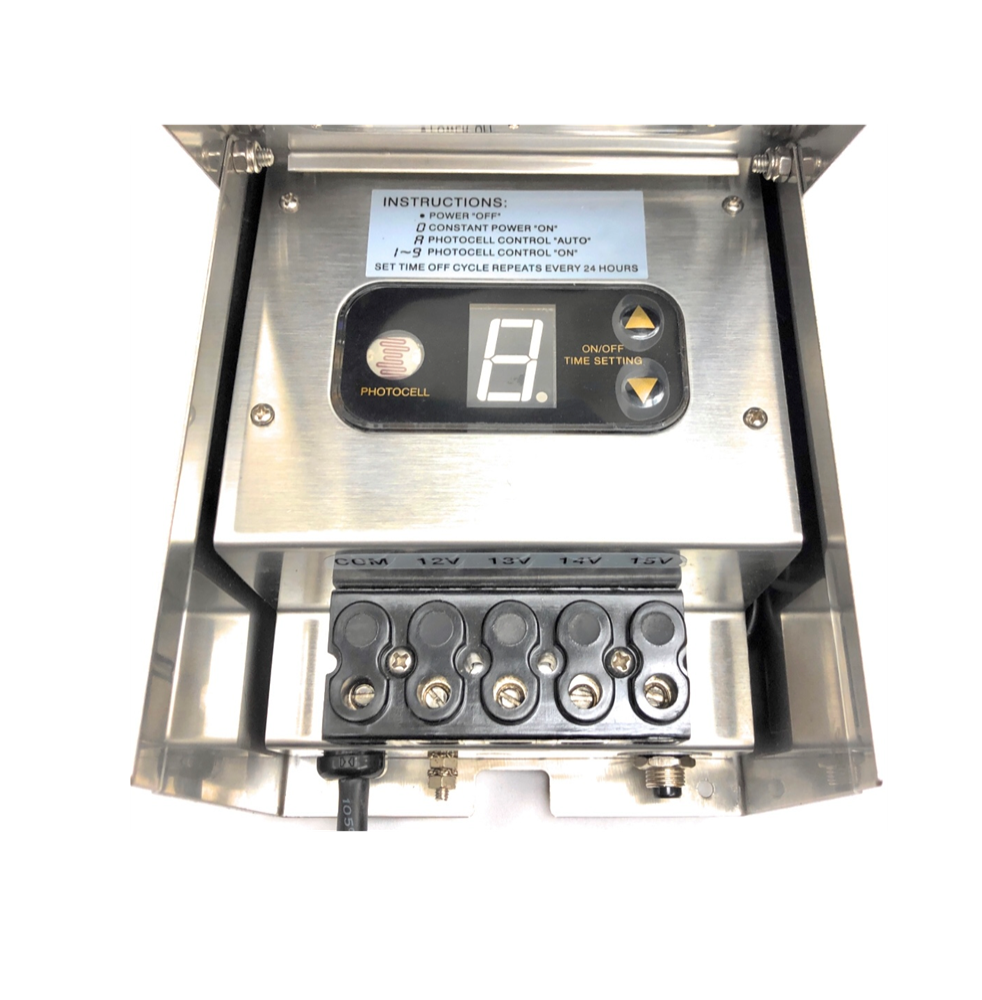

Built In Photo Cell and Timer 1 - 9 Hours (Plug in Timer can be used to override the photo cell indoors or dark places)
6' Cord with a 3 prong plug and UL Listed / Magnetic Toroidal Core

Technical Description

Low Voltage

Input Voltage: 120V

Frequency (HZ): 60HZ

Power Rated: 300W

UL & CUL Listed
